KBP206G, KBP200G-WON - 2.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER

WON-TOP

📥 Download Datasheet

KBP206G Datasheet Preview — This datasheet PDF includes multiple part numbers: KBP206G, KBP200G-WON. Please refer to the document for exact specifications by model.

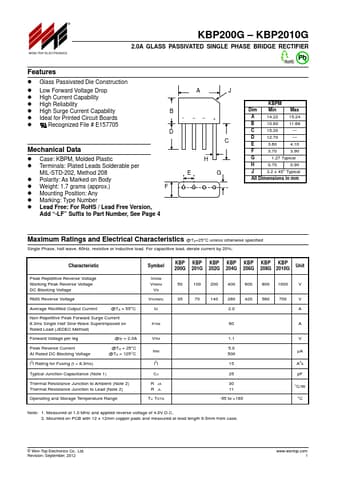

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: KBP206G, KBP200G-WON
Manufacturer: WON-TOP
File Size: 38.73 KB
Datasheet: KBP200G-WON-TOP.pdf
Description: 2.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
Note: This datasheet PDF includes multiple part numbers: KBP206G, KBP200G-WON.
Please refer to the document for exact specifications by model.

KBP206G Product details

Features

Glass Passivated Die Construction.
Low Forward Voltage Drop.
High Current Capability.
High Reliability.
High Surge Current Capability.
Ideal for Printed Circuit Boards.
Recognized File # E157705 B D Mechanical Data.
Case: KBPM, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: As Marked on Body.
Weight: 1.7 grams (approx. ).
Mounting Position: Any.
Marking: Type Number.
Lead Free: F.
