SB360-G Datasheet, Rectifiers, Comchip

SB360-G Features

• Rectifiers -Low drop down voltage. -Metal-Semiconductor junction with guard ring -High surge current capability -Silicon epitaxial planar chips. -For use in low voltage, high efficiency inverters,

PDF File Details

Part number:

SB360-G

Manufacturer:

Comchip

File Size:

46.56kb

Download:

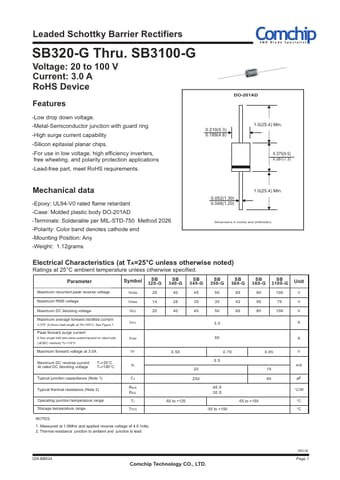

📄 Datasheet

Description:

Leaded schottky barrier rectifiers.

SB360-G Application

• Applications -Lead-free part, meet RoHS requirements. Comchip SMD Diode Specialist DO-201AD 0.210(5.3) 0.189(4.8) 1.0(25.4) Min. 0.375(9.5) 0.28
