23C32, STATIC READ ONLY MEMORY

,.",commodore ~ aamicanduct:ar group ©[K!AJ@~ MPS 23C32 STATIC READ ONLY MEMORY (4096x8) 23C32 STATIC READ ONLY MEMORY (4096x8) .
The 23C32 high performance read only memory is organized 4096 words by 8 bits with access times of less than 450 ns.

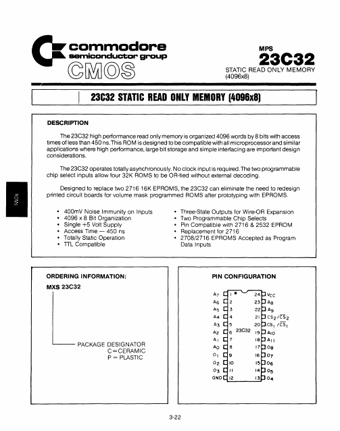

datasheet Preview Page 1 from Datasheet4u.com

23C32-Commodore.pdf

23C32 Datasheet Preview — Preview of 23C32 PDF

Datasheet Details

Part number:

23C32

Manufacturer:

Commodore

File Size:

120.12 KB

Description:

STATIC READ ONLY MEMORY

Applications

* where high performance, large bit storage and simple interfacing are important design considerations. The 23C32 operates totally asynchronously. No clock input is required. The two programmable chip select inputs allow four 32K ROMS to be OR-tied without external decoding. Designed to replace two 27
