23C1010 - 1M-BITMASKROM(8BITOUTPUT)

23C1010 Datasheet Preview — Preview of 23C1010 PDF

Datasheet Details

Part number	23C1010
Manufacturer	MacronixInternational
File Size	116.47 KB
Description	1M-BITMASKROM(8BITOUTPUT)
Datasheet	23C1010_MacronixInternational.pdf

23C1010 Product details

Description

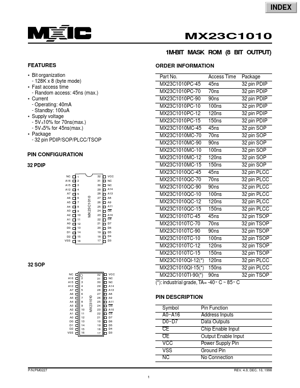

Symbol A0~A16 D0~D7 CE OE VCC VSS NC Pin Function Address Inputs Data Outputs Chip Enable Input Output Enable Input Power Supply Pin Ground Pin No Connection REV.4.0, DEC.10, 1998 P/N:PM0227 1 INDEX MX23C1010 32 TSOP(I) 32 PLCC VCC A12 A15 A16 NC NC NC 30 29 VSS D1 D2 D3 D4 D5 ABSOLUTE MAXIMUM RATINGS ITEM Voltage on any Pin Relative to VSS Ambient Operating Temperature Storage Temperature SYMBOL VIN Topr Tstg RATINGS -0.5V to 7.0V -40°C to 85°C -65°C to 125°C DC CHARACTERISTICS (T

Features

Bit organization - 128K x 8 (byte mode).
Fast access time - Random access: 45ns (max. ).
Current - Operating: 40mA - Standby: 100uA.
Supply voltage - 5V±10% for 70ns(max. ) - 5V±5% for 45ns(max. ).
Package - 32 pin PDIP/SOP/PLCC/TSOP ORDER.
