23C4000 - 4M-BITMASKROM(8BITOUTPUT)

Datasheet Summary

Description

Symbol A0~A18 D0~D7 CE OE VCC VSS NC 32 TSOP Pin Function Address Inputs Data Outputs Chip Enable Input Output Enable Input Power Supply Pin Ground Pin No Connection 32 PLCC VCC A12 A15 A16 A18 A17 NC MX23C4000 A7 A6 A5 A4 A3 A2 A1 A0 D0 5 4 1 32 30 29 A14 A13 A8 A9 9 MX23C4000 25 A11 O

Features

  • Bit organization - 512K x 8 (byte mode).
  • Fast access time - Random access: 90ns (max. ).
  • Current - Operating: 35mA - Standby: 100uA.
  • Supply voltage - 5V ± 10%.
  • Package - 32 pin PDIP (600 mil) - 32 pin PLCC - 32 pin SOP (450 mil) - 32 pin TSOP (8mm x 20mm) ORDER.

📥 Download Datasheet

Datasheet preview – 23C4000

Datasheet Details

Part number 23C4000
Manufacturer MacronixInternational
File Size 900.77 KB
Description 4M-BITMASKROM(8BITOUTPUT)
Datasheet download datasheet 23C4000 Datasheet
Additional preview pages of the 23C4000 datasheet.

📁 Similar Datasheet

  • 23C16 - STATIC READ ONLY MEMORY (Commodore)
  • 23C256 - HT23C256 (ETC)
  • 23C32 - STATIC READ ONLY MEMORY (Commodore)
  • 23C32340GZ - UPD23C32340GZ (NEC)
Other Datasheets by MacronixInternational
  • 23C1010 - 1M-BITMASKROM(8BITOUTPUT)
  • 23C2000 - 2M-BITMASKROM(8BITOUTPUT)
  • 23C6410 - 64M-BITMaskROM(8/16BitOutput)ForSOPandTSOPPackages

Full PDF Text Transcription

Click to expand full text

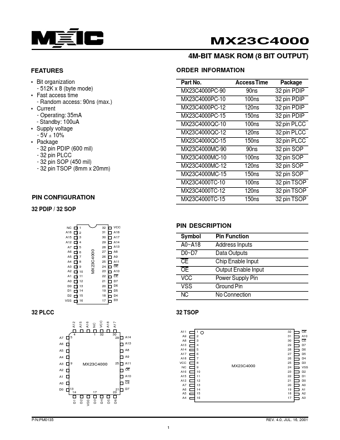

MX23C4000 4M-BIT MASK ROM (8 BIT OUTPUT) FEATURES • Bit organization - 512K x 8 (byte mode) • Fast access time - Random access: 90ns (max.) • Current - Operating: 35mA - Standby: 100uA • Supply voltage - 5V ± 10% • Package - 32 pin PDIP (600 mil) - 32 pin PLCC - 32 pin SOP (450 mil) - 32 pin TSOP (8mm x 20mm) ORDER INFORMATION Part No.
