1N645-1 Datasheet - Compensated Deuices Incorporated

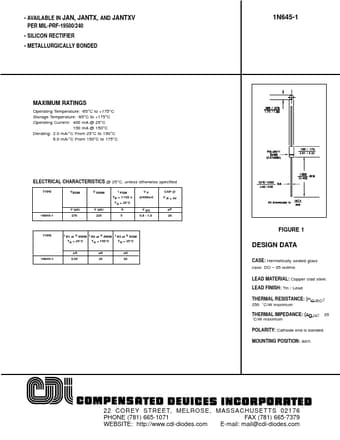

1N645-1 SILICON RECTIFIER

AVAILABLE IN JAN, JANTX, AND JANTXV PER MIL-PRF-19500/240 SILICON RECTIFIER METALLURGICALLY BONDED 1N645-1 MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C Operating Current: 400 mA @ 25°C 150 mA @ 150°C Derating: 2.0 mA/°C From 25°C to 150°C 6.0 mA/°C From 150°C to 175°C ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified TYPE VRSM V RWM I FSM TP = 1/120 s TA = 25°C A 5 VF @400mA CAP @ V R = 4V V (pk) 1N645-1.

1N645-1_CompensatedDeuicesIncorporated.pdf
