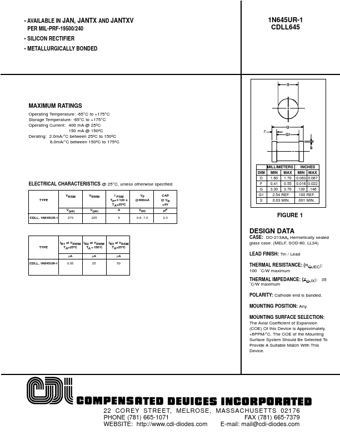

1N645UR-1 SILICON RECTIFIER

AVAILABLE IN JAN, JANTX AND JANTXV PER MIL-PRF-19500/240 SILICON RECTIFIER METALLURGICALLY BONDED 1N645UR-1 CDLL645 MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C Operating Current: 400 mA @ 25ºC 150 mA @ 150ºC Derating: 2.0mA/°C between 25ºC to 150ºC 6.0mA/°C between 150ºC to 175ºC ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified VRSM TYPE V(pk) CDLL, 1N645UR-1 270 V(pk) 225 VRWM I FSM TP=1/120 s TA=25ºC .
