1N6632 Datasheet - Compensated Deuices Incorporated

1N6632 5 WATT ZENER DIODES

AVAILABLE IN JAN, JANTX, JANTXV, AND JANS PER MIL-PRF-19500/356 5 WATT ZENER DIODES NON CAVITY CONSTRUCTION METALLURGICALLY BONDED 1N6632 THRU 1N6637 AND 1N5968 AND 1N5969 MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C Power Dissapation: 5W @ TL=+25°C, L=3/8” Power Derating: 33mW/°C above TL=+25°C, L=3/8” Forward Voltage: 1.5 V dc @ IF=1A dc 0.115/0.145 2.92/3.68 POLARITY BAND (CATHODE) 0.130/0.195 3.30/4.9.

1N6632_CompensatedDeuicesIncorporated.pdf

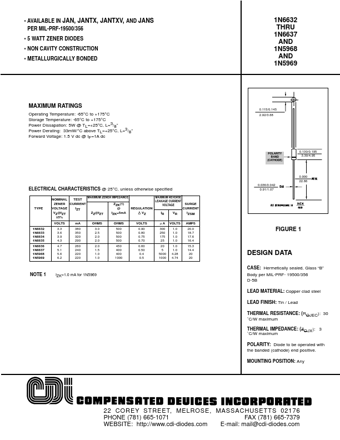

Preview of 1N6632 PDF
1N6632 Datasheet Preview Page 2

Datasheet Details

Part number:

1N6632

Manufacturer:

Compensated Deuices Incorporated

File Size:

27.78 KB

Description:

5 watt zener diodes.
