1N6630US, 1N6626US SURFACE MOUNT ULTRA FAST RECOVERY GLASS RECTIFIERS

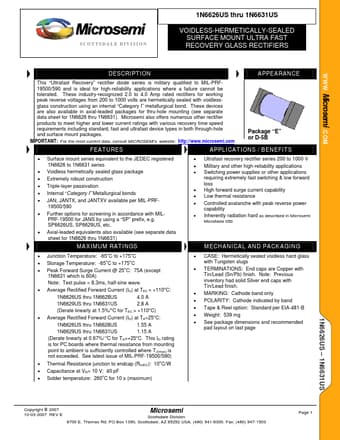

📥 Download Datasheet  Datasheet Preview Page 1

Description

WWW.Microsemi .COM SCOTTSDALE DIVISION 1N6626US thru 1N6631US VOIDLESS-HERMETICALLY-SEALED SURFACE MOUNT ULTRA FAST RECOVERY GLASS RECTIFIERS DESCR.
APPEARANCE This “Ultrafast Recovery” rectifier diode series is military qualified to MIL-PRF19500/590 and is ideal for high-reliability applications.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N6630US, 1N6626US. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
1N6630US, 1N6626US
Manufacturer
Microsemi ↗
File Size
225.65 KB
Datasheet
1N6626US-Microsemi.pdf
Description
SURFACE MOUNT ULTRA FAST RECOVERY GLASS RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: 1N6630US, 1N6626US.
Please refer to the document for exact specifications by model.

Applications

* where a failure cannot be tolerated. These industry-recognized 2.0 to 4.0 Amp rated rectifiers for working peak reverse voltages from 200 to 1000 volts are hermetically sealed with voidlessglass construction using an internal “Category I” metallurgical bond. These devices are also available in axial
