Datasheet4U Logo Datasheet4U.com

1N6632US - 5 WATT ZENER DIODES

📥 Download Datasheet

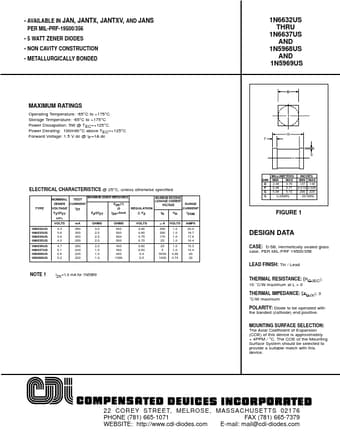

Datasheet preview – 1N6632US

Datasheet Details

Part number 1N6632US
Manufacturer Compensated Deuices Incorporated
File Size 59.12 KB
Description 5 WATT ZENER DIODES
Datasheet download datasheet 1N6632US Datasheet
Additional preview pages of the 1N6632US datasheet.

📁 Similar Datasheet

  • 1N6632US - Surface Mount 5 WATT GLASS ZENER (Microsemi)
  • 1N6632 - 5 WATT GLASS ZENER DIODES (Microsemi)
  • 1N6632 - 5 WATT GLASS ZENER DIODE (Digitron Semiconductors)
  • 1N6630 - ULTRA FAST RECTIFIERS (Digitron Semiconductors)
  • 1N6630 - ULTRA FAST RECOVERY GLASS RECTIFIERS (Microsemi)
  • 1N6630 - HYPER FAST RECOVERY RECTIFIER (SSDI)
  • 1N6630 - ULTRAFAST RECTIFIERS (Sensitron)
  • 1N6630US - SURFACE MOUNT ULTRA FAST RECOVERY GLASS RECTIFIERS (Microsemi)
  • 1N6631 - ULTRA FAST RECTIFIERS (Digitron Semiconductors)
  • 1N6631 - ULTRA FAST RECOVERY GLASS RECTIFIERS (Microsemi)
Other Datasheets by Compensated Deuices Incorporated

Full PDF Text Transcription

Click to expand full text
• AVAILABLE IN JAN, JANTX, JANTXV, AND JANS PER MIL-PRF-19500/356 • 5 WATT ZENER DIODES • NON CAVITY CONSTRUCTION • METALLURGICALLY BONDED 1N6632US THRU 1N6637US AND 1N5968US AND 1N5969US MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C Power Dissapation: 5W @ TEC=+125°C Power Derating: 100mW/°C above TEC=+125°C Forward Voltage: 1.5 V dc @ IF=1A dc ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified NOMINAL TEST ZENER CURRENT VOLTAGE IZT VZ@IZT ±5% VOLTS 1N6632US 1N6633US 1N6634US 1N6635US 1N6636US 1N6637US 1N5968US 1N5969US 3.3 3.6 3.9 4.3 4.7 5.1 5.6 6.2 mA 380 350 320 290 260 240 220 220 OHMS 3.0 2.5 2.0 2.0 2.0 1.5 1.0 1.0 OHMS 500 500 500 500 450 400 400 1000 VOLTS 0.90 0.80 0.75 0.70 0.60 0.50 0.4 0.
Published: |
