BD241 Datasheet - Comset Semiconductor

BD241 NPN transistors

NPN BD241 A B C MEDIUM POWER LINEAR AND SWITCHING APPLICATIONS. The BD241, A, B, C are the NPN transistors mounted in Jedec TO-220 plastic package. They are the silicon epitaxial-base Power Transistors for use in medium power linear and switching applications. The PNP complements are BD242, A, B, C. Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol Ratings VCEO VCER VEBO IC IB PT TJ TS Collector-Emitter Voltage (IB = 0) Collector-Emitter Voltage (RBE = 100 Ω.

BD241-ComsetSemiconductor.pdf

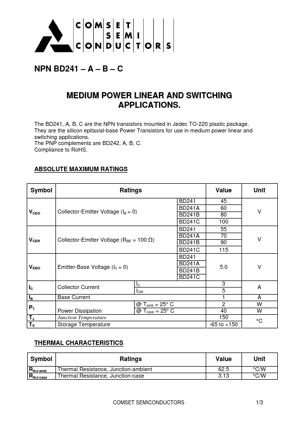

Preview of BD241 PDF
BD241 Datasheet Preview Page 2 BD241 Datasheet Preview Page 3

Datasheet Details

Part number:

BD241

Manufacturer:

Comset Semiconductor

File Size:

94.75 KB

Description:

Npn transistors.
