BD241F Datasheet - Power Innovations Limited

BD241F NPN SILICON POWER TRANSISTORS

BD241D, BD241E, BD241F NPN SILICON POWER TRANSISTORS Copyright © 1997, Power Innovations Limited, UK SEPTEMBER 1981 - REVISED MARCH 1997 q q q q 40 W at 25°C Case Temperature 3 A Continuous Collector Current 5 A Peak Collector Current Customer-Specified Selections Available B C E 1 2 3 TO-220 PACKAGE (TOP VIEW) Pin 2 is in electrical contact with the mounting base. MDTRACA absolute maximum ratings at 25°C case temperature (unless otherwise noted) RATING BD241D Collector-emitter voltage (RBE .

BD241F_PowerInnovationsLimited.pdf

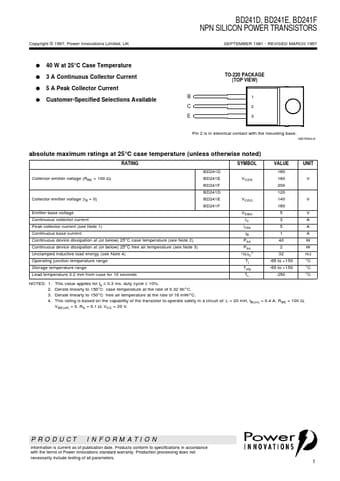

Preview of BD241F PDF
BD241F Datasheet Preview Page 2 BD241F Datasheet Preview Page 3

Datasheet Details

Part number:

BD241F

Manufacturer:

Power Innovations Limited

File Size:

86.86 KB

Description:

Npn silicon power transistors.
