BD244 Datasheet - Power Innovations Limited

BD244 - PNP SILICON POWER TRANSISTORS

BD244, BD244A, BD244B, BD244C PNP SILICON POWER TRANSISTORS Copyright © 1997, Power Innovations Limited, UK JUNE 1973 - REVISED MARCH 1997 q Designed for Complementary Use with the BD243 Series 65 W at 25°C Case Temperature 6 A Continuous Collector Current 10 A Peak Collector Current Customer-Specified Selections Available B C E q q q q TO-220 PACKAGE (TOP VIEW) 1 2 3 Pin 2 is in electrical contact with the mounting base.

MDTRACA absolute maximum ratings at 25°C case temperature (unless o

BD244_PowerInnovationsLimited.pdf

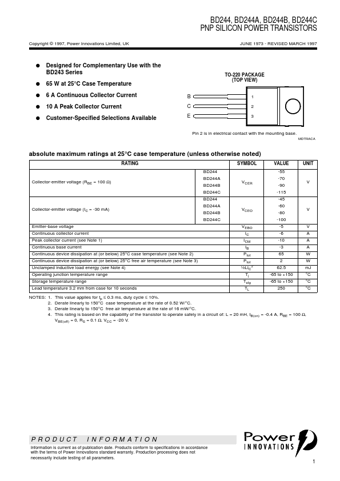

Preview of BD244 PDF
BD244 Datasheet Preview Page 2 BD244 Datasheet Preview Page 3

Datasheet Details

Part number:

BD244

Manufacturer:

Power Innovations Limited

File Size:

86.43 KB

Description:

Pnp silicon power transistors.
