BD245C, BD245 Datasheet - Comset Semiconductors

BD245C - NPN SILICON POWER TRANSISTORS

BD245 A B C NPN SINGLE-DIFFUSED MESA SILICON POWER TRANSISTORS They are the power transistors for power amplifier and high-speed-switching applications. The complementary is BD246, A, B, C Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol Ratings BD245 BD245A BD245B BD245C BD245 BD245A BD245B BD245C IC ICM Tmb = 25° C Value 45 60 80 100 55 70 90 115 5.0 10 15 3 80 -65 to +150 -65 to +150 Unit VCEO Collector-Emitter Voltage (IC = -30mA) www.DataSheet.net/ V .

BD245_ComsetSemiconductors.pdf

This datasheet PDF includes multiple part numbers: BD245C, BD245. Please refer to the document for exact specifications by model.

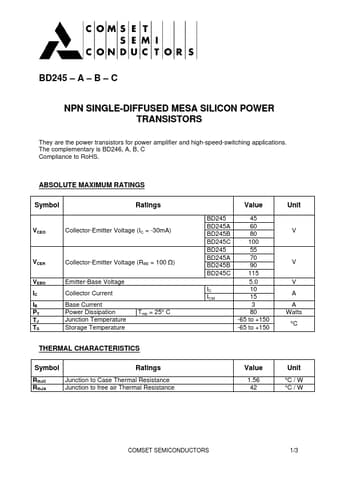

BD245C Datasheet Preview Page 2 BD245C Datasheet Preview Page 3

Datasheet Details

Part number:

BD245C, BD245

Manufacturer:

Comset Semiconductors

File Size:

124.57 KB

Description:

Npn silicon power transistors.

Note:

This datasheet PDF includes multiple part numbers: BD245C, BD245.
Please refer to the document for exact specifications by model.
