BUX11 Datasheet - Comset Semiconductors

BUX11 HIGH POWER TRANSISTOR

NPN BUX11 HIGH CURRENT, HIGH SPEED , HIGH POWER TRANSISTOR The BUX11 is silicon multiepitaxial planar NPN transistors in Jedec TO-3. They are intended for use in switching and linear appications in military and industrial equipments. Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol VCEO VCBO VEBO VCEX IC ICM IB Pt TJ TStg Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector-Emitter Voltage Collector Current Collector Peak Current Base Current Total Power Dissipatio.

BUX11_ComsetSemiconductors.pdf

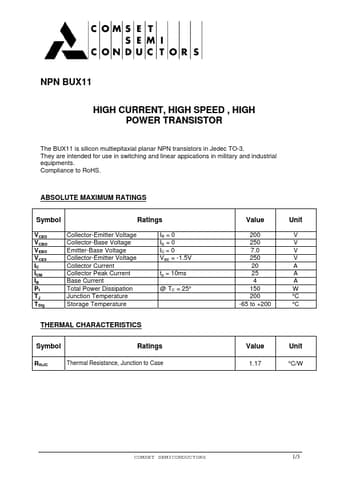

Preview of BUX11 PDF
BUX11 Datasheet Preview Page 2 BUX11 Datasheet Preview Page 3

Datasheet Details

Part number:

BUX11

Manufacturer:

Comset Semiconductors

File Size:

127.68 KB

Description:

High power transistor.
