MJ4031, MJ4030 (MJ4030 - MJ4032) MEDIUM POWER COMPLEMENTARY SILICON TRANSISTORS

MJ4031 Description

PNP MJ4030 * MJ4031 * MJ4032 MEDIUM POWER COMPLEMENTARY SILICON TRANSISTORS They are silicon epitaxial-base PNP power transistors in m.

MJ4031 Applications

* The complementary NPN types are the MJ4033, MJ4034, MJ4035 Compliance to RoHS ABSOLUTE MAXIMUM RATINGS Symbol VCBO Collector-Base Voltage Ratings http://www. DataSheet4U. net/ Value MJ4030 MJ4031 MJ4032 MJ4030 MJ4031 MJ4032 MJ4030 MJ4031 MJ4032 -60 -80 -100 -60 -80 -100 -5.0 -16 -0.5 150 200 -65

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MJ4031, MJ4030. Please refer to the document for exact specifications by model.

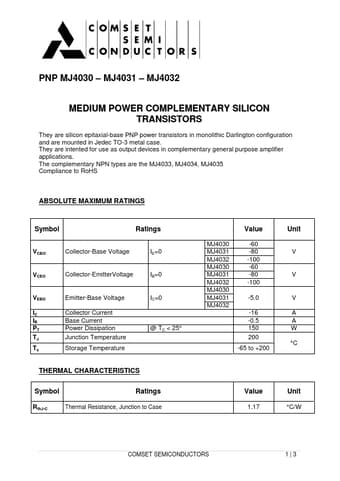

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MJ4031, MJ4030
Manufacturer
Comset Semiconductors
File Size
128.65 KB
Datasheet
MJ4030_ComsetSemiconductors.pdf
Description
(MJ4030 - MJ4032) MEDIUM POWER COMPLEMENTARY SILICON TRANSISTORS
Note
This datasheet PDF includes multiple part numbers: MJ4031, MJ4030.
Please refer to the document for exact specifications by model.
