MJ4035 Datasheet - ST Microelectronics

MJ4035 COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS

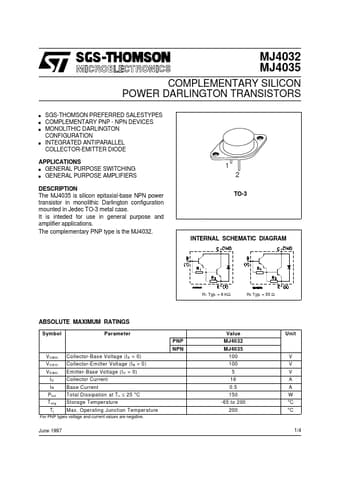

The MJ4035 is silicon epitaxial-base NPN power transistor in monolithic Darlington configuration mounted in Jedec TO-3 metal case. It is inteded for use in general purpose and amplifier applications. The complementary PNP type is the MJ4032. INTERNAL SCHEMATIC DIAGRAM R1 Typ. = 6 KΩ R2 Typ. = 55 .

MJ4035_STMicroelectronics.pdf

Preview of MJ4035 PDF
MJ4035 Datasheet Preview Page 2 MJ4035 Datasheet Preview Page 3

Datasheet Details

Part number:

MJ4035

Manufacturer:

STMicroelectronics ↗

File Size:

69.76 KB

Description:

Complementary silicon power darlington transistors.
