CX60077

2.5 Gbps Long Haul Laser Driver

CX60077 Features

* Single supply : -5.2 Volts CML interface (with capability of receiving ECL level) Low power consumption ≤ 400 mW Input impedance of 50 Ω Loss of input data detection Pulse and bias current monitors 1 to 80 mA laser diode

CX60077 General Description

The CX60077 is a high-speed laser driver designed for use in a transmitter module for fiber-optic communications, such as Synchronous Optical Network (SONET), Synchronous Digital Hierarchy (SDH), Asynchronous Transfer Mode (ATM), and Dense Wavelength Division Multiplexer (DWDM). This device can ach.

CX60077 Datasheet (173.28 KB)

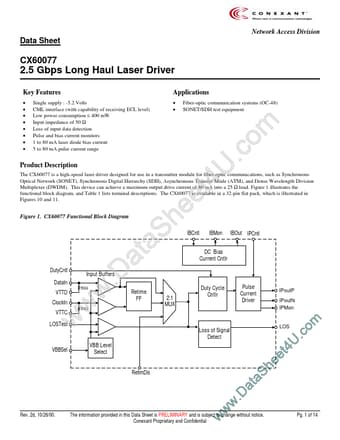

Preview of CX60077 PDF

Datasheet Details

Part number:

CX60077

Manufacturer:

Conexant Systems

File Size:

173.28 KB

Description:

2.5 gbps long haul laser driver.
