CX65104

700 - 1000 MHz Linear Power Amplifier

CX65104 Features

* Typical POUT of 31 dBm

* High linearity

* Low power consumption

* Single +5 V supply

* 8-pin LCC 8 x 8 mm package VCC1 8 VCC2 4 Driver Amp Bias Power Amp Bias RFIN 2 Input Match PA Interstage Match PA Output Match 6 RFOUT GND 1, 3, 5, 7 C1220a

CX65104 General Description

Skyworks CX65104 Power Amplifier (PA) is a fully matched, 8-pin Leadless Chip Carrier (LCC) surface mount module, developed for cellular, Wireless Local Loop (WLL), and Industrial, Scientific, Medical (ISM) applications. This small, power-efficient PA has a full 700 to 1000 MHz bandwidth coverage pa.

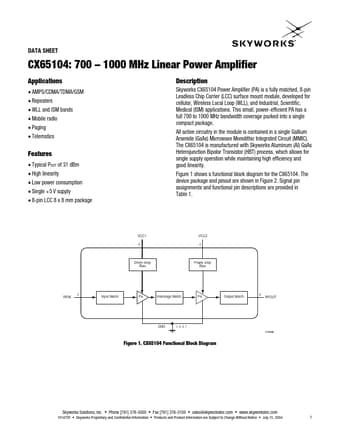

CX65104 Datasheet (166.10 KB)

Preview of CX65104 PDF

Datasheet Details

Part number:

CX65104

Manufacturer:

ETC

File Size:

166.10 KB

Description:

700 - 1000 mhz linear power amplifier.
DATA SHEET CX65104: 700

* 1000 MHz Linear Power Amplifier Applications

* AMPS/CDMA/TDMA/GSM

* Repeaters

* WLL and ISM.
