CPS121 Datasheet - Consensic

CPS121 Digital Barometer

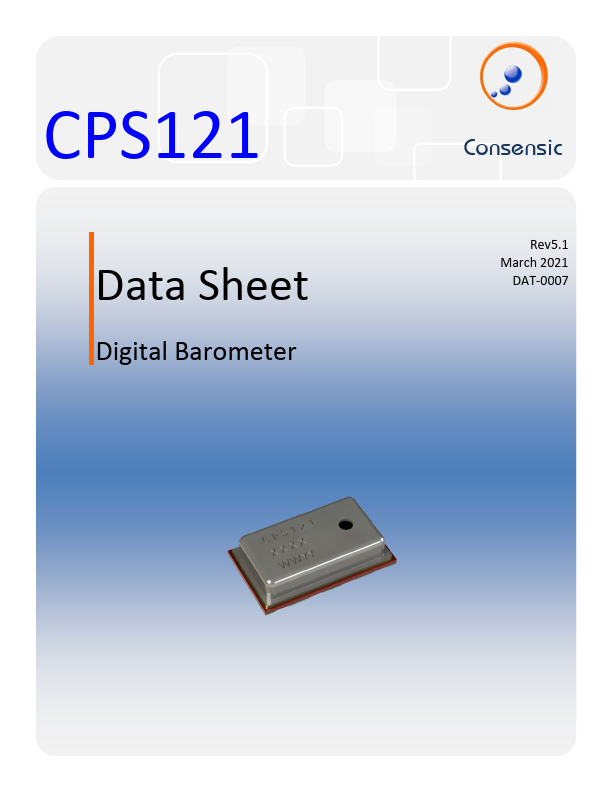

CPS121 Data Sheet Digital Barometer Consensic Rev5.1 March 2021 DAT-0007 CPS121 Digital Barometer OvervieWwater Resistant The CPS121 system-in-a-package (SIP) solution comprises of aresistive bridge type pressure sensor and a 24-bit ADC for high resolution and accurate pressure measurements. The fully calibrated pressure and temperature compensated digital output makes the CPS121 solution simple to use.The CPS121includes internal calibration logic that provides accurate pressure and temperatur.

CPS121 Features

* Factory Calibrated Pressure and Temperature Sensor

* Supply Voltage: 2V to 5.5V(3V @typical)

* Average Current Consumption:

CPS121 Datasheet (622.84 KB)

Preview of CPS121 PDF

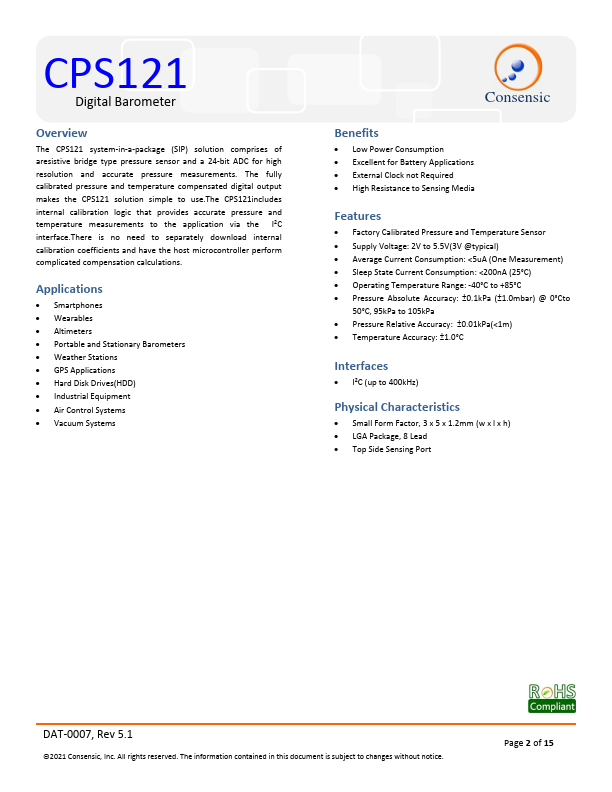

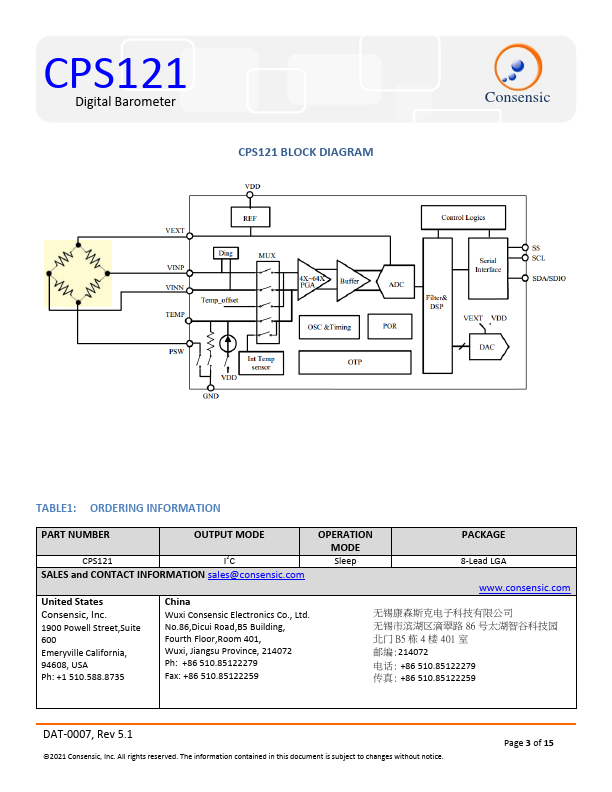

CPS121 Datasheet Preview Page 2 CPS121 Datasheet Preview Page 3

Datasheet Details

Part number:

CPS121

Manufacturer:

Consensic

File Size:

622.84 KB

Description:

Digital barometer.
