CPS-1848

Gen2 RapidIO Switch

CPS-1848 Features

* RapidIO ports

* 48 bidirectional S-RIO lanes

* Port widths of 1x, 2x, and 4x allow up to 20 Gbps per port

* Port speeds selectable: 6.25, 5, 3.125, 2.5, or 1.25 Gbaud

* Support Level I defined short or long haul reach, and Level II defined short-, medium-, o

CPS-1848 General Description

The CPS-1848 (80HCPS1848) is a RapidIO Specification (Rev. 2.1) compliant Secure Packet Switch whose functionality is central to routing packets for distribution among DSPs, processors, FPGAs, other switches, or any other RapidIO-based devices. It can also be used in RapidIO backplane switching. The.

CPS-1848 Datasheet (1.25 MB)

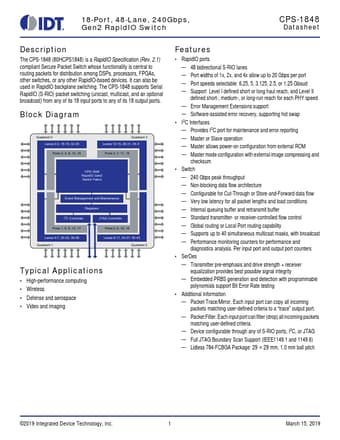

Preview of CPS-1848 PDF

Datasheet Details

Part number:

CPS-1848

Manufacturer:

IDT

File Size:

1.25 MB

Description:

Gen2 rapidio switch.
