CPS041, Silicon Controlled Rectifier Sensitive Gate SCR

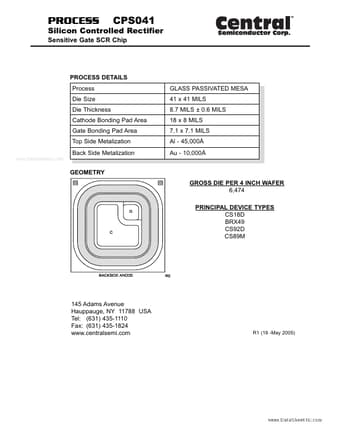

PROCESS CPS041 Silicon Controlled Rectifier Sensitive Gate SCR Chip PROCESS DETAILS Process Die Size Die Thickness Cathode Bonding Pad Area Gate Bonding Pad Area Top Side Metalization Back Side Metalization www.DataSheet4U.com GLASS PASSIVATED MESA 41 x 41 MILS 8.7 MILS ± 0.6 MILS 18 x 8 MILS 7.1 x 7.1 MILS Al - 45,000Å Au - 10,000Å GEOMETRY GROSS DIE PER 4 INCH WAFER 6,474 PRINCIPAL DEVICE TYPES CS18D BRX49 CS92D CS89M 145 Adams Avenue Hauppauge, NY 11788 USA Tel: (631) 435-1110 Fax: (631
