CPS090 Datasheet - Central Semiconductor

CPS090 Silicon Controlled Rectifier 8.0 Amp Sensitive Gate SCR

PROCESS CPS090 Silicon Controlled Rectifier 8.0 Amp Sensitive Gate SCR Chip PROCESS DETAILS Process Die Size Die Thickness Cathode Bonding Pad Area Gate Bonding Pad Area Top Side Metalization Back Side Metalization www.DataSheet4U.com Glass Passivated Mesa 90 x 90 MILS 8.7 MILS 60 x 30 MILS 22 x 22 MILS Al - 45,000Å Al/Mo/Ni/Ag - 32,000Å GEOMETRY GROSS DIER PER 4 INCH WAFER 1,310 PRINCIPAL DEVICE TYPES CS220-8M Series CSD-8M Series CSDD-8M Series 145 Adams Avenue Hauppauge, NY 11788 USA T.

CPS090 Datasheet (67.33 KB)

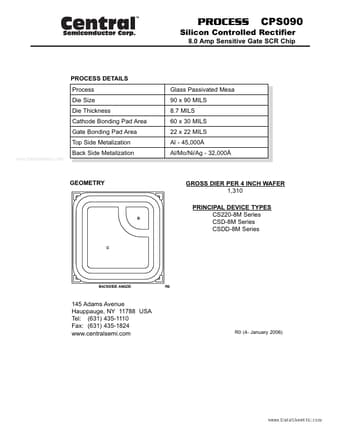

Preview of CPS090 PDF

Datasheet Details

Part number:

CPS090

Manufacturer:

Central Semiconductor ↗

File Size:

67.33 KB

Description:

Silicon controlled rectifier 8.0 amp sensitive gate scr.
