CSD73 - NPN SILICON EPITAXIAL POWER TRANSISTOR

Product Overview

📥 Download Datasheet

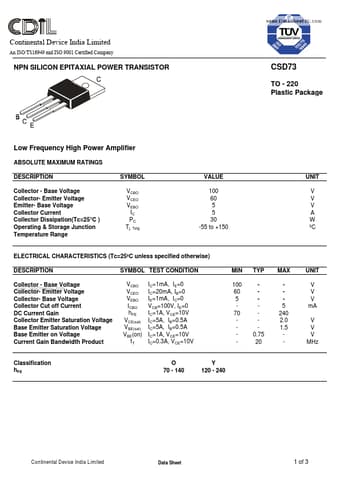

Datasheet preview – CSD73

Datasheet Details

Part number CSD73
Manufacturer Continental Device India Limited
File Size 203.69 KB
Description NPN SILICON EPITAXIAL POWER TRANSISTOR
Datasheet download datasheet CSD73 Datasheet
Additional preview pages of the CSD73 datasheet.

Product details

Description

Collector - Base Voltage Collector- Emitter Voltage Emitter- Base Voltage Collector Current Collector Dissipation(Tc=25°C ) Operating & Storage Junction Temperature Range SYMBOL VCBO VCEO VEBO IC PC Tj, Tstg VALUE 100 60 5 5 30 -55 to +150 UNIT V V V A W ºC ELECTRICAL CHARACTERISTICS (Tc=25ºC unless specified otherwise) DESCRIPTION Collector - Base Voltage www.DataSheet4U.com Collector- Emitter Voltage Collector- Base Voltage Collector Cut off Current DC Current Gain Collector Emitter Saturatio
