CZ1W10

SURFACE MOUNT ZENER DIODES

CZ1W10 General Description

SYMBOL VALUE UNIT VZ 4.7- 47V V Working Voltage Range www.DataSheet4U.com +/- 5 % Voltage Tolerance Working Ptot 600 mW Power Dissipation Tj,Tstg -55 to +150 deg C Operating & Storage Junction Temperature Range Thermal Resistance Rth j-a 430 K/W Junction to Ambient# Rth j-a 500 K/W Junction to Ambie.

CZ1W10 Datasheet (132.35 KB)

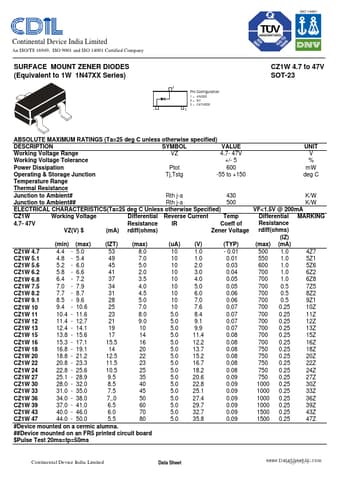

Preview of CZ1W10 PDF

Datasheet Details

Part number:

CZ1W10

Manufacturer:

Continental Device India Limited

File Size:

132.35 KB

Description:

Surface mount zener diodes.
Continental Device India Limited An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company SURFACE MOUNT ZENER DIODES (Equivalent to 1W 1N47XX Series.
