CZ1W13, CZ1Wxxx Datasheet - Continental Device India Limited

CZ1W13 SURFACE MOUNT ZENER DIODES

SYMBOL VALUE UNIT VZ 4.7- 47V V Working Voltage Range www.DataSheet4U.com +/- 5 % Voltage Tolerance Working Ptot 600 mW Power Dissipation Tj,Tstg -55 to +150 deg C Operating & Storage Junction Temperature Range Thermal Resistance Rth j-a 430 K/W Junction to Ambient# Rth j-a 500 K/W Junction to Ambie.

CZ1Wxxx_ContinentalDeviceIndiaLimited.pdf

This datasheet PDF includes multiple part numbers: CZ1W13, CZ1Wxxx. Please refer to the document for exact specifications by model.

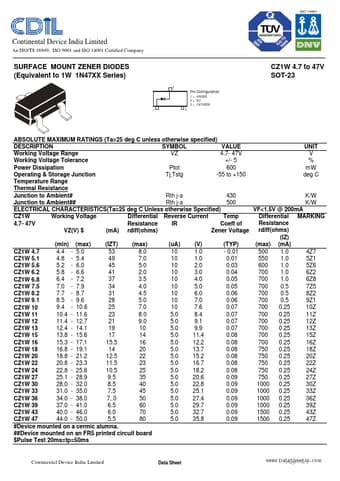

CZ1W13 Datasheet Preview Page 2 CZ1W13 Datasheet Preview Page 3

Datasheet Details

Part number:

CZ1W13, CZ1Wxxx

Manufacturer:

Continental Device India Limited

File Size:

132.35 KB

Description:

Surface mount zener diodes.

Note:

This datasheet PDF includes multiple part numbers: CZ1W13, CZ1Wxxx.
Please refer to the document for exact specifications by model.
