CZ1W15, CZ1Wxxx - SURFACE MOUNT ZENER DIODES

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CZ1W15, CZ1Wxxx. Please refer to the document for exact specifications by model.

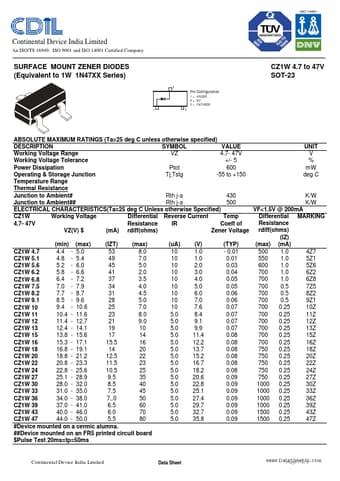

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CZ1W15, CZ1Wxxx
Manufacturer
Continental Device India Limited
File Size
132.35 KB
Datasheet
download datasheet CZ1Wxxx_ContinentalDeviceIndiaLimited.pdf
Description
SURFACE MOUNT ZENER DIODES
Note
This datasheet PDF includes multiple part numbers: CZ1W15, CZ1Wxxx.
Please refer to the document for exact specifications by model.

CZ1W15 Product details

Description

SYMBOL VALUE UNIT VZ 4.7- 47V V Working Voltage Range www.DataSheet4U.com +/- 5 % Voltage Tolerance Working Ptot 600 mW Power Dissipation Tj,Tstg -55 to +150 deg C Operating & Storage Junction Temperature Range Thermal Resistance Rth j-a 430 K/W Junction to Ambient# Rth j-a 500 K/W Junction to Ambient## VF
