KP2110H Datasheet, Phototransistor, Cosmo

KP2110H Features

  • Phototransistor 1.Current transfer ratio ( CTR:Min. 60% at IF=2mA VCE=5V ) 2.High isolation voltage between input and output ( Viso:5000Vrms ) 3.Pb free and RoHS compliant. 4.MSL class 1 5.Agency Appro

PDF File Details

Part number:

KP2110H

Manufacturer:

Cosmo

File Size:

232.54kb

Download:

📄 Datasheet

Description:

6pin phototransistor. The KP2110 series consist of an infrared emitting diode, optically coupled to a phototransistor detector. They are packaged in a 6-pi

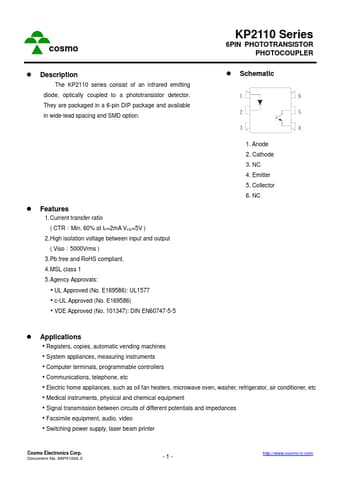

Datasheet Preview: KP2110H 📥 Download PDF (232.54kb)
Page 2 of KP2110H Page 3 of KP2110H

KP2110H Application

  • Applications
  • Registers, copies, automatic vending machines
  • System appliances, measuring instruments
  • Computer terminals
