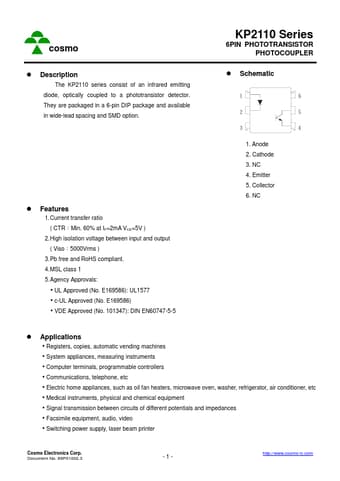

KP2110S Datasheet, Phototransistor, Cosmo

KP2110S Features

• Phototransistor 1.Current transfer ratio ( CTR：Min. 60% at IF=2mA VCE=5V ) 2.High isolation voltage between input and output ( Viso：5000Vrms ) 3.Pb free and RoHS compliant. 4.MSL class 1 5.Agency Appro

PDF File Details

Part number:

KP2110S

Manufacturer:

Cosmo

File Size:

232.54kb

Download:

📄 Datasheet

Description:

6pin phototransistor. The KP2110 series consist of an infrared emitting diode, optically coupled to a phototransistor detector. They are packaged in a 6-pi

KP2110S Application

• Applications
• Registers, copies, automatic vending machines
• System appliances, measuring instruments
• Computer terminals
