KPC6N137, 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER

cosmo z .
The KPC6N137 series consist of an LED.

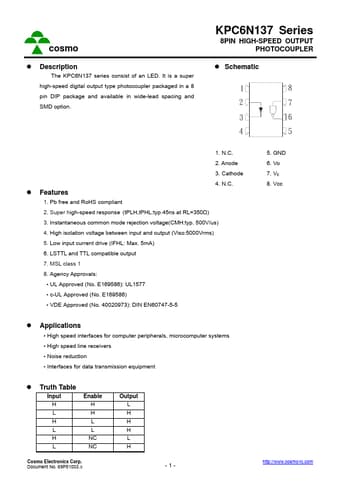

datasheet Preview Page 1 from Datasheet4u.com

KPC6N137-Cosmo.pdf

KPC6N137 Datasheet Preview — Preview of KPC6N137 PDF

Datasheet Details

Part number:

KPC6N137

Manufacturer:

Cosmo

File Size:

321.58 KB

Description:

8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER

Features

* 1. Pb free and RoHS compliant 4. N. C. 2. Super high-speed response (tPLH,tPHL:typ.45ns at RL=350Ω) 3. Instantaneous common mode rejection voltage(CMH:typ. 500V/us) 4. High isolation voltage between input and output (Viso:5000Vrms) 5. Low input current drive (IFHL: Max. 5mA) 6. LSTTL and TTL co

Applications

* High speed interfaces for computer peripherals, microcomputer systems
* High speed line receivers
* Noise reduction
* Interfaces for data transmission equipment z Truth Table
