Datasheet Details
- Part number
- KPLT2500M90
- Manufacturer
- Cosmo
- File Size
- 178.34 KB
- Datasheet
- KPLT2500M90-Cosmo.pdf
- Description
- FIBER OPTIC TRANSMITTING MODULE
KPLT2500M90 Description

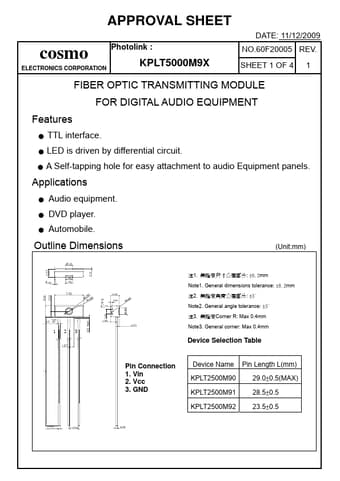

APPROVAL SHEET cosmo Photolink : KPLT5000M9X ELECTRONICS CORPORATION DATE: 11/12/2009 NO.60F20005 REV.SHEET 1 OF 4 1 FIBER OPTIC TRANSMITTING MODUL.
KPLT2500M90 Features
* TTL interface.
* LED is driven by differential circuit.
KPLT2500M90 Applications
* Audio equipment.
* DVD player.
* Automobile. Outline Dimensions
(Unit:mm)
123
1. : ±0.2mm Note1. General dimensions tolerance: ±0.2mm 2. : ±3° Note2. General angle tolerance: ±3° 3. Corner R: Max 0.4mm Note3. General corner: Max 0.4mm
Device Selection Table
Pin Connection 1. Vin
