KPLT2500M92, KPLT2500M90, FIBER OPTIC TRANSMITTING MODULE

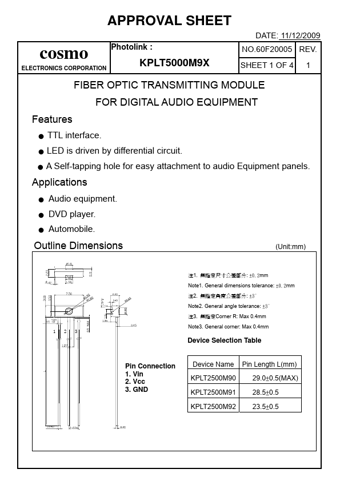

APPROVAL SHEET cosmo Photolink : KPLT5000M9X ELECTRONICS CORPORATION DATE: 11/12/2009 NO.60F20005 REV.SHEET 1 OF 4 1 FIBER OPTIC TRANSMITTING MODUL.

datasheet Preview Page 1 from Datasheet4u.com

KPLT2500M90-Cosmo.pdf

KPLT2500M92 Datasheet Preview — This datasheet PDF includes multiple part numbers: KPLT2500M92, KPLT2500M90. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KPLT2500M92, KPLT2500M90

Manufacturer:

Cosmo

File Size:

178.34 KB

Description:

FIBER OPTIC TRANSMITTING MODULE

Note:

This datasheet PDF includes multiple part numbers: KPLT2500M92, KPLT2500M90.
Please refer to the document for exact specifications by model.

Features

* TTL interface.
* LED is driven by differential circuit.

Applications

* Audio equipment.
* DVD player.
* Automobile. Outline Dimensions (Unit:mm) 123 1. : ±0.2mm Note1. General dimensions tolerance: ±0.2mm 2. : ±3° Note2. General angle tolerance: ±3° 3. Corner R: Max 0.4mm Note3. General corner: Max 0.4mm Device Selection Table Pin Connection 1. Vin
