KT1005, KT1000 - 4PIN LSOP PHOTOTRANSISTOR

KT1005 Description

cosmo z .
The KT1000 series consist of an infrared emitting diode, optically coupled to a phototransistor detector, and is incorporated in a 4 pin LSOP wide bod.

KT1005 Features

* a high current transfer ratio, low coupling capacitance and high isolation voltage. KT1000 Series 4PIN LSOP PHOTOTRANSISTOR PHOTOCOUPLER z Schematic 1 4 23 z Features 1. Halogen free 2. Pb free and RoHS compliant 3. High isolation voltage 5000Vrms 4. Opaque type, SMD low profile 4 lead package

KT1005 Applications

* Hybrid substrates that require high density mounting.
* Programmable controllers.
* Switch mode power su

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KT1005, KT1000. Please refer to the document for exact specifications by model.

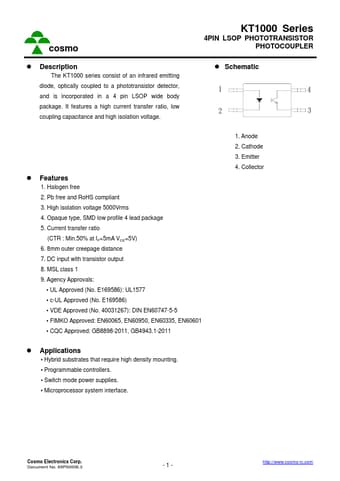

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KT1005, KT1000
Manufacturer
Cosmo
File Size
168.23 KB
Datasheet
KT1000-Cosmo.pdf
Description
4PIN LSOP PHOTOTRANSISTOR
Note
This datasheet PDF includes multiple part numbers: KT1005, KT1000.
Please refer to the document for exact specifications by model.
