KT1008, KT1000, 4PIN LSOP PHOTOTRANSISTOR

cosmo z .
The KT1000 series consist of an infrared emitting diode, optically coupled to a phototransistor detector, and is incorporated in a 4 pin LSOP wide bod.

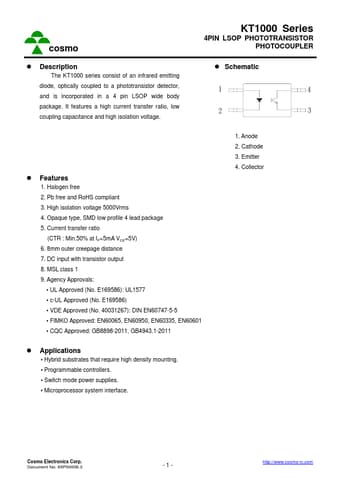

datasheet Preview Page 1 from Datasheet4u.com

KT1000-Cosmo.pdf

KT1008 Datasheet Preview — This datasheet PDF includes multiple part numbers: KT1008, KT1000. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KT1008, KT1000

Manufacturer:

Cosmo

File Size:

168.23 KB

Description:

4PIN LSOP PHOTOTRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: KT1008, KT1000.
Please refer to the document for exact specifications by model.

Features

* a high current transfer ratio, low coupling capacitance and high isolation voltage. KT1000 Series 4PIN LSOP PHOTOTRANSISTOR PHOTOCOUPLER z Schematic 1 4 23 z Features 1. Halogen free 2. Pb free and RoHS compliant 3. High isolation voltage 5000Vrms 4. Opaque type, SMD low profile 4 lead package

Applications

* Hybrid substrates that require high density mounting.
* Programmable controllers.
* Switch mode power su
