KTLP3616L, KTLP3616 Datasheet - Cosmo

KTLP3616L 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

The KTLP3616 series consist of a GaAs infrared emitting diode optically coupled to an non-zero-crossing silicon bilateral TRIAC and a main output power TRIAC. These devices isolate low voltage logic from 115/240 VAC lines to provide random phase control of high current TRIACs or thyristors. These de.

KTLP3616L Features

* 1. Pb free and RoHS compliant 2. 600V peak blocking voltage 3. On-state R.M.S Current 1.2A 4. Simplifies logic control of 115/240 VAC power 5. Non zero voltage crossing 6. Isolation voltage between input and output (Viso：5300Vms) 7. MSL class 1 8. Agency Approvals：

* UL Approved (No. E169586

KTLP3616_COSMOElectronicsCorporation.pdf

This datasheet PDF includes multiple part numbers: KTLP3616L, KTLP3616. Please refer to the document for exact specifications by model.

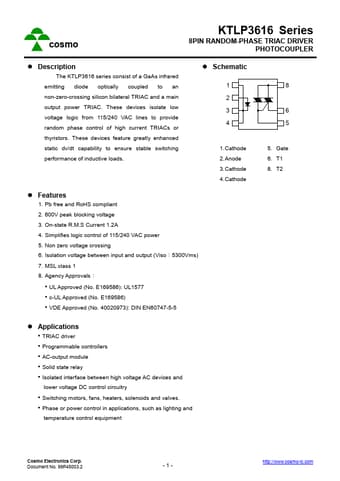

KTLP3616L Datasheet Preview Page 2 KTLP3616L Datasheet Preview Page 3

Datasheet Details

Part number:

KTLP3616L, KTLP3616

Manufacturer:

Cosmo

File Size:

242.50 KB

Description:

8pin random-phase triac driver photocoupler.

Note:

This datasheet PDF includes multiple part numbers: KTLP3616L, KTLP3616.
Please refer to the document for exact specifications by model.
