BCM4334X

Single Chip IEEE 802.11 a/b/g/n MAC/Baseband/Radio

BCM4334X Features

* The BCM4334X implements the highly sophisticated Enhanced Collaborative Coexistence algorithms and hardware mechanisms, allowing for an extremely collaborative Bluetooth coexistence scheme along with coexistence support for external radios (such as cellular and LTE, GPS, WiMAX, and Ultra-Wideband) a

BCM4334X General Description

The Broadcom® BCM4334X single-chip device provides the highest level of integration for a mobile or handheld wireless system, with integrated IEEE 802.11 a/b/g and single-stream IEEE 802.11n MAC/baseband/radio, Bluetooth 4.0 + HS, and FM radio receiver. It is designed to be used with external 2.4 GH.

BCM4334X Datasheet (2.28 MB)

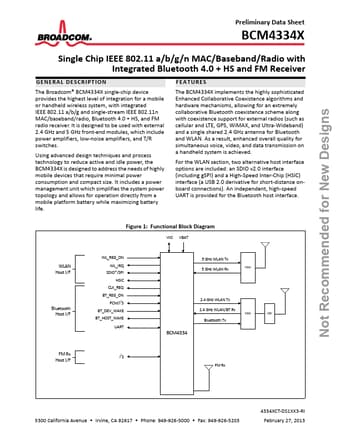

Preview of BCM4334X PDF

Datasheet Details

Part number:

BCM4334X

Manufacturer:

Cypress Semiconductor

File Size:

2.28 MB

Description:

Single chip ieee 802.11 a/b/g/n mac/baseband/radio.
Not Recommended for New Designs Preliminary Data Sheet BCM4334X Single Chip IEEE 802.11 a/b/g/n MAC/Baseband/Radio with Integrated Bluetooth 4.0 + H.
