BCM400P500T1K8A31

Fixed Ratio DC-DC Converter

BCM400P500T1K8A31 Features

* Up to 1750 W continuous output power

* 2735 W/in3 power density

* 98.0% peak efficiency

* 4242 Vdc isolation

* Parallel operation for multi-kW arrays

* OV, OC, UV, short circuit and thermal protection

* 6123 through-hole ChiP package n 2.494”

BCM400P500T1K8A31 General Description

The VI Chip® Bus Converter (BCM) is a high efficiency Sine Amplitude Converter (SAC), operating from a 260 to 410 VDC primary bus to deliver an isolated ratiometric output from 32.5 to 51.3 VDC. The BCM400y5.

BCM400P500T1K8A31 Datasheet (1.19 MB)

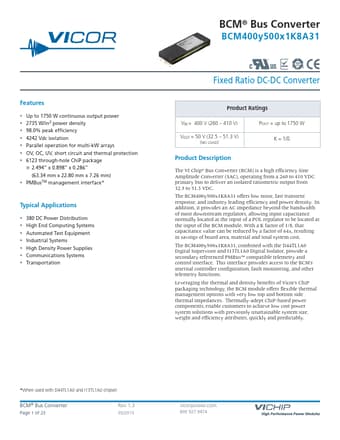

Preview of BCM400P500T1K8A31 PDF

Datasheet Details

Part number:

BCM400P500T1K8A31

Manufacturer:

Vicor

File Size:

1.19 MB

Description:

Fixed ratio dc-dc converter.
