BCM380P475M1K2A31 Fixed Ratio DC-DC Converter

The VI Chip® Bus Converter (BCM) is a high efficiency Sine Amplitude Converter (SAC), operating from a 260 to 410 VDC primary bus to deliver an isolated ratiometric output from 32.5 to 51.3 VDC. The BCM380.

BCM380P475M1K2A31 Features

* Up to 1200 W continuous output power

* 1876 W/in3 power density

* 97.9% peak efficiency

* 4242 Vdc isolation

* Parallel operation for multi-kW arrays

* OV, OC, UV, short circuit and thermal protection

* 6123 through-hole ChiP package n 2.494”

BCM380P475T1K2A31-Vicor.pdf

BCM380P475M1K2A31 Datasheet Preview — This datasheet PDF includes multiple part numbers: BCM380P475M1K2A31, BCM380P475T1K2A31. Please refer to the document for exact specifications by model.

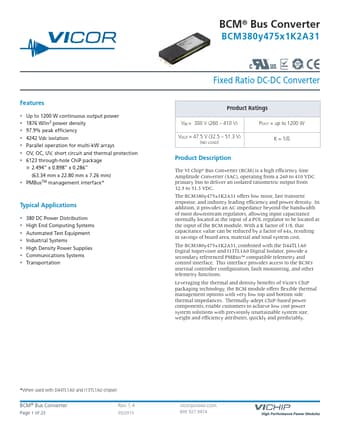

BCM380P475M1K2A31 Datasheet Preview Page 2

BCM380P475M1K2A31 Datasheet Preview Page 3

Datasheet Details

Part number:

BCM380P475M1K2A31, BCM380P475T1K2A31

Manufacturer:

Vicor

File Size:

1.19 MB

Description:

Fixed ratio dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: BCM380P475M1K2A31, BCM380P475T1K2A31.
Please refer to the document for exact specifications by model.
