BCM380P475T1K2A31 - Fixed Ratio DC-DC Converter

Product Overview

Vicor

Datasheet Details

Part number	BCM380P475T1K2A31
Manufacturer	Vicor
File Size	1.19 MB
Description	Fixed Ratio DC-DC Converter
Datasheet	BCM380P475T1K2A31 Datasheet

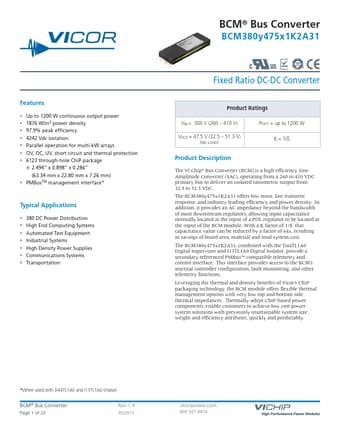

Additional preview pages of the BCM380P475T1K2A31 datasheet.

Product details

Description

The VI Chip® Bus Converter (BCM) is a high efficiency Sine Amplitude Converter (SAC), operating from a 260 to 410 VDC primary bus to deliver an isolated ratiometric output from 32.5 to 51.3 VDC.

Features

Up to 1200 W continuous output power.
1876 W/in3 power density.
97.9% peak efficiency.
4242 Vdc isolation.
Parallel operation for multi-kW arrays.
OV, OC, UV, short circuit and thermal protection.
6123 through-hole ChiP package n 2.494” x 0.898” x 0.286” (63.34 mm x 22.80 mm x 7.26 mm).
PMBusTM management interface.
Typical.
