CY26187-2 Broadcom Reference Design Clock Generator

📥 Download Datasheet Datasheet Preview Page 1

Description

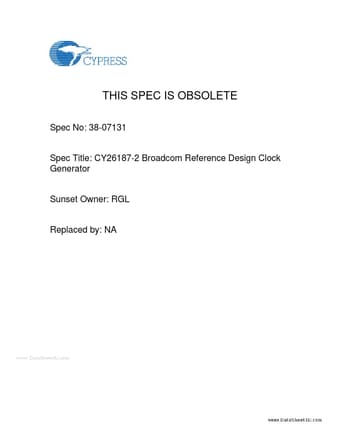

THIS SPEC IS OBSOLETE Spec No: 38-07131 Spec Title: CY26187-2 Broadcom Reference Design Clock Generator Sunset Owner: RGL Replaced by: NA www.Data.
Reference Crystal Input Analog Voltage Supply Output enable (0-off; 1-on) Ground Voltage Supply 142.

📥 Download Datasheet

Preview of CY26187-2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
CY26187-2
Manufacturer
Cypress Semiconductor
File Size
200.91 KB
Datasheet
CY26187-2_CypressSemiconductor.pdf
Description
Broadcom Reference Design Clock Generator

Features

* Integrated phase-locked loop
* Low skew, low jitter, high accuracy outputs
* 3.3V Operation Part Number CY26187-2 Outputs 1 Broadcom Reference Design BCM5680_5404 Input Frequency 50 MHz Output Frequencies 1 copy of 142.8 MHz (3.3V) Benefits Highest Performance PLL tailored

Applications

* Meets critical timing requirements in complex system designs Logic Block Diagram OUTPUT MULTIPLEXER AND DIVIDERS VCO P 50 XIN XOUT P Comp OSC Q 142.8 MHz PLL OE VDD VDD VSS VSS Pin Configuration CY26187 8-pin SOIC XIN AVDD OE AVSS 1 2 3 4 8 7 6 5 XOUT VSS 142.8 MHz VDD www. DataSheet4U. co
