CY29942 Datasheet - Cypress Semiconductor

CY29942 1:18 Clock Distribution Buffer

The CY29942 is a low-voltage 200-MHz clock distribution buffer with an LVCMOS or LVTTL compatible input clock. All other control inputs are LVCMOS/LVTTL compatible. The eighteen outputs are 2.5V or 3.3V LVCMOS or LVTTL compatible and can drive 50 Ω series or parallel terminated transmission lines. F.

CY29942 Features

* 200-MHz clock support 2.5V or 3.3V operation LVCMOS/LVTTL clock input LVCMOS-/LVTTL-compatible inputs 18 clock outputs: drive up to 36 clock lines 200 ps max. output-to-output skew Output Enable contr

CY29942_CypressSemiconductor.pdf

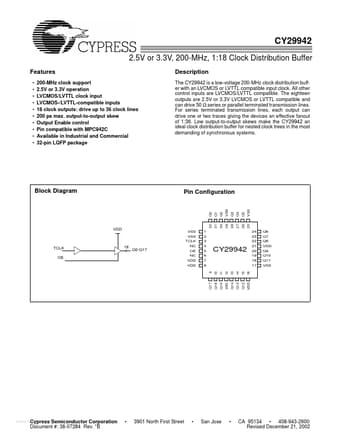

Preview of CY29942 PDF
CY29942 Datasheet Preview Page 2 CY29942 Datasheet Preview Page 3

Datasheet Details

Part number:

CY29942

Manufacturer:

Cypress Semiconductor

File Size:

204.67 KB

Description:

1:18 clock distribution buffer.
