CY7C006 (CY7C006 / CY7C016) 16K x 8/9 Dual-Port Static RAM

The CY7C006 and CY7C016 are high-speed CMOS 16K x 8 and 16K x 9 dual-port static RAMs. Various arbitration Logic Block Diagram R/WL CE L OEL (7C016) I/O 8L I/O7L I/O0L BUSYL [1,2] I/O CONTROL I/O CONTROL I/O 8R (7C016) I/O 7R I/O 0R BUSYR A 13R [1,2] A 13L A 0L ADDRESS DECODER MEMORY ARRAY AD.

CY7C006 Features

* True dual-ported memory cells which allow simultaneous reads of the same memory location

* 16K x 8 organization (CY7C006)

* 16K x 9 organization (CY7C016)

* 0.65-micron CMOS for optimum speed/power

* High-speed access: 15 ns

* Low operating power: IC

CY7C006_CypressSemiconductor.pdf

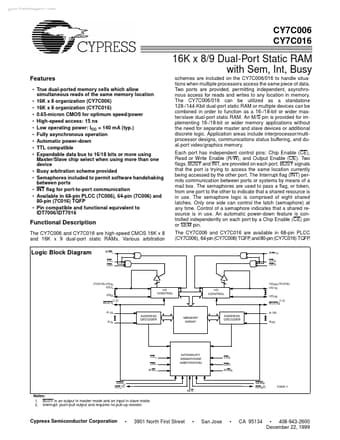

Preview of CY7C006 PDF
