CY7C007A - (CY7C006A - CY7C017A) Dual Port Static RAM

Product Overview

Cypress Semiconductor

Datasheet Details

Part number	CY7C007A
Manufacturer	Cypress Semiconductor
File Size	424.27 KB
Description	(CY7C006A - CY7C017A) Dual Port Static RAM
Datasheet	CY7C007A Datasheet
Note	This datasheet PDF includes multiple part numbers: CY7C007A, CY7C006A. Please refer to the document for exact specifications by model.

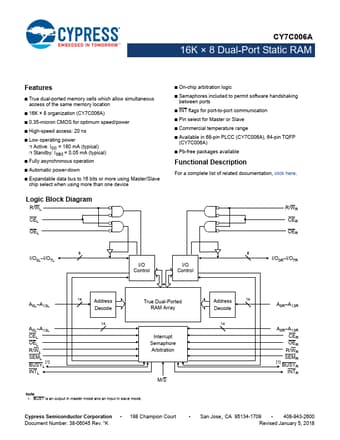

Additional preview pages of the CY7C007A datasheet.

Product details

Description

Architecture The CY7C006A, CY7C007A, CY7C016A and CY7C017A consist of an array of 32K/16K words of 8 bits and 32K words of 9 bits each of dual-port RAM cells, I/O and address lines, and control signals (CE, OE, R/W).These control pins permit independent access for reads or writes to any location in memory.To handle simultaneous writes/reads to the same location, a BUSY pin is provided on each port.Two Interrupt (INT) pins can be utilized for port-to-port communication.Two Semaphore (SEM) co

Features

True dual-ported memory cells which allow simultaneous access of the same memory location.
16K x 8 organization (CY7C006A) w w.
32K x 8 organization (CY7C007A).
16K x 9 organization (CY7C016A).
32K x 9 organization (CY7C017A).
0.35-micron CMOS for optimum speed/power.
High-speed access: 12[1]/15/20 ns.
Low operating power.
Active: ICC = 180 mA (typical).
Standby: ISB3 = 0.05 mA (typical).
Full.
