CY7C006AV - Asynchronous Dual-Port Static RAM

Product Overview

Cypress Semiconductor

📥 Download Datasheet

CY7C006AV Asynchronous Dual-Port Static RAM by Cypress Semiconductor - Datasheet Preview — Datasheet preview – CY7C006AV

Datasheet Details

Part number	CY7C006AV
Manufacturer	Cypress Semiconductor
File Size	453.32 KB
Description	Asynchronous Dual-Port Static RAM
Datasheet	CY7C006AV Datasheet

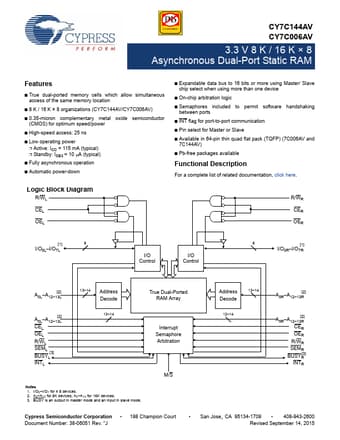

Additional preview pages of the CY7C006AV datasheet.

Product details

Features

True dual-ported memory cells which allow simultaneous access of the same memory location.
8 K / 16 K × 8 organizations (CY7C144AV/CY7C006AV).
0.35-micron complementary metal oxide semiconductor (CMOS) for optimum speed/power.
High-speed access: 25 ns.
Low operating power.
Active: ICC = 115 mA (typical).
Standby: ISB3 = 10 A (typical).
Fully asynchronous operation.
Automatic power-down Logic Block Diagram R/WL CEL OEL.
Expandable data bus to 1.
