CY7C403, CY7C401 Datasheet - Cypress Semiconductor

CY7C403 (CY7C401 - CY7C404) 64 x 4 Cascadable FIFO / 64 x 5 Cascadable FIFO

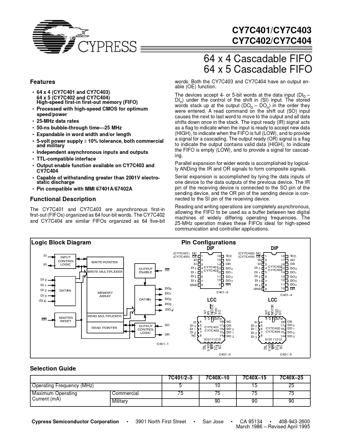

The CY7C401 and CY7C403 are asynchronous first-in first-out (FIFOs) organized as 64 four-bit words. The CY7C402 and CY7C404 are similar FIFOs organized as 64 five-bit Logic Block Diagram SI IR INPUT CONTROL LOGIC Pin Configurations DIP WRITE POINTER (CY7C401) NC (CY7C403) OE IR SI DI 0 DI 1 DI 2 D.

CY7C403 Features

* 64 x 4 (CY7C401 and CY7C403) 64 x 5 (CY7C402 and CY7C404) High-speed first-in first-out memory (FIFO)

* Processed with high-speed CMOS for optimum speed/power

* 25-MHz data rates

* 50-ns bubble-through time

* 25 MHz

* Expandable in word width and/or le
