CY7C429, CY7C419 - 256/512/1K/2K/4K x 9 Asynchronous FIFO

CY7C429 Description

CY7C419/21/25/29/33256/512/1K/2K/4K x 9 Asynchronous FIFO CY7C419/21/25/29/33 256/512/1K/2K/4K x 9 Asynchronous FIFO .
The CY7C419, CY7C420/1, CY7C424/5, CY7C428/9, and CY7C432/3 are first-in first-out (FIFO) memories offered in 600-mil wide and 300-mil wide packages.

CY7C429 Features

* Asynchronous first-in first-out (FIFO) buffer memories
* 256 x 9 (CY7C419)
* 512 x 9 (CY7C421)
* 1K x 9 (CY7C425)
* 2K x 9 (CY7C429)
* 4K x 9 (CY7C433)
* Dual-ported RAM cell
* High speed 50 MHz read and write independent of depth and width
* Low operating power

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CY7C429, CY7C419. Please refer to the document for exact specifications by model.

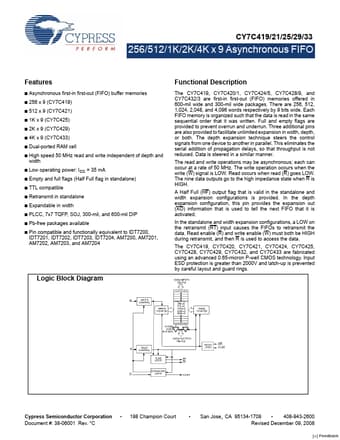

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CY7C429, CY7C419
Manufacturer
Cypress
File Size
474.11 KB
Datasheet
CY7C419-Cypress.pdf
Description
256/512/1K/2K/4K x 9 Asynchronous FIFO
Note
This datasheet PDF includes multiple part numbers: CY7C429, CY7C419.
Please refer to the document for exact specifications by model.
