Datasheet Details
- Part number
- CY7C4201V
- Manufacturer
- Cypress Semiconductor
- File Size
- 263.58 KB
- Datasheet
- CY7C4201V_CypressSemiconductor.pdf
- Description
- Low-Voltage 64/256/512/1K/2K/4K/8K x 9 Synchronous FIFOs
CY7C4201V Description

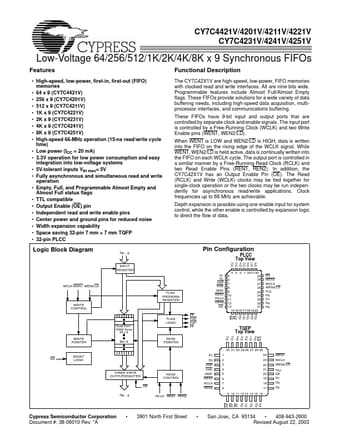

CY7C4421V/4201V/4211V/4221V CY7C4231V/4241V/4251V Low-Voltage 64/256/512/1K/2K/4K/8K x 9 Synchronous FIFOs .
The CY7C42X1V are high-speed, low-power, FIFO memories with clocked read and write interfaces.
CY7C4201V Features
* High-speed, low-power, first-in, first-out (FIFO) memories
* 64 x 9 (CY7C4421V)
* 256 x 9 (CY7C4201V)
* 512 x 9 (CY7C4211V)
* 1K x 9 (CY7C4221V)
* 2K x 9 (CY7C4231V)
* 4K x 9 (CY7C4241V)
* 8K x 9 (CY7C4251V)
* High-speed 66-MH
CY7C4201V Applications
* Clock frequencies up to 66 MHz are achievable. Depth expansion is possible using one enable input for system control, while the other enable is controlled by expansion logic to direct the flow of data. Logic Block Diagram
D0
* 8
Pin Configuration
PLCC Top View
4 3 2 1 32 3130 29 5 28 6 2
