CY7C408A

64 x 8 Cascadable FIFO

CY7C408A Features

* 64 x 8 and 64 x 9 first-in first-out (FIFO) buffer memory

* 35-MHz shift in and shift out rates

* Almost Full/Almost Empty and Half Full flags

* Dual-port RAM architecture

* Fast (50-ns) bubble-through

* Independent asynchronous inputs and outputs

CY7C408A General Description

The CY7C408A and CY7C409A are 64-word deep by 8- or 9-bit wide first-in first-out (FIFO) buffer memories. In addition to the industry-standard handshaking signals, almost full/almost empty (AFE) and half-full (HF) flags are provided. AFE is HIGH when the FIFO is almost full or almost empty, otherwis.

CY7C408A Datasheet (344.64 KB)

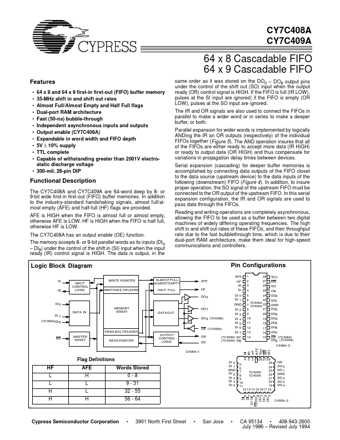

Preview of CY7C408A PDF

Datasheet Details

Part number:

CY7C408A

Manufacturer:

Cypress

File Size:

344.64 KB

Description:

64 x 8 cascadable fifo.
