CY7C4291 Datasheet, FIFOs, Cypress Semiconductor

CY7C4291 Features

• Fifos
• High-speed, low-power, first-in first-out (FIFO) memories
• 64K × 9 (CY7C4281)
• 128K × 9 (CY7C4291)
• 0.5-micron CMOS for optimum speed/power

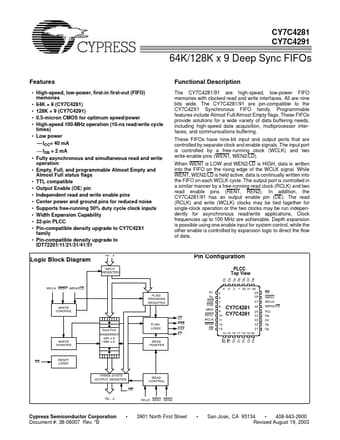

PDF File Details

Part number:

CY7C4291

Manufacturer:

Cypress Semiconductor

File Size:

199.28kb

Download:

📄 Datasheet

Description:

64k/128k x 9 deep sync fifos. The CY7C4281/91 are high-speed, low-power FIFO memories with clocked read and write interfaces. All are nine bits wide. The CY7C4281/

CY7C4291 Application

• Applications Clock frequencies up to 100 MHz are achievable. Depth expansion is possible using one enable input for system control, while the other
