CY7C4292, CY7C4282 Datasheet - Cypress Semiconductor

CY7C4292, CY7C4282, (CY7C4282 / CY7C4292) 64K/128K x 9 Deep Sync FIFOs

www.DataSheet4U.com CY7C4282 CY7C4292 64K/128K x 9 Deep Sync FIFOs with Retransmit and Depth Expansion .
The CY7C4282/CY7C4292 are high-speed, low-power, FIFO memories with clocked read and write interfaces.

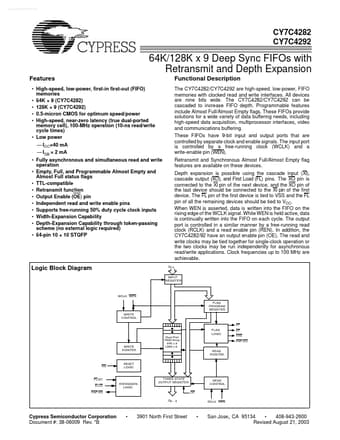

datasheet Preview Page 1 from Datasheet4u.com

CY7C4282_CypressSemiconductor.pdf

CY7C4292 Datasheet Preview — This datasheet PDF includes multiple part numbers: CY7C4292, CY7C4282. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CY7C4292, CY7C4282

Manufacturer:

Cypress Semiconductor

File Size:

234.79 KB

Description:

(CY7C4282 / CY7C4292) 64K/128K x 9 Deep Sync FIFOs

Note:

This datasheet PDF includes multiple part numbers: CY7C4292, CY7C4282.
Please refer to the document for exact specifications by model.

Features

* High-speed, low-power, first-in first-out (FIFO) memories
* 64K × 9 (CY7C4282)
* 128K × 9 (CY7C4292)
* 0.5-micron CMOS for optimum speed/power
* High-speed, near-zero latency (true dual-ported memory cell), 100-MHz operation (10-ns read/write cycle times)

Applications

* Clock frequencies up to 100 MHz are achievable. D0-8 INPUT REGISTER Logic Block Diagram WCLK WEN FLAG PROGRAM REGISTER WRITE CONTROL FF FLAG LOGIC Dual Port RAM Array 64K x 9 128K x 9 READ POINTER EF PAE PAF/XO WRITE POINTER RS RESET LOGIC FL/RT XI/LD PAF/XO EXPANSION LOGIC THREE-STATE OUTPU
